In accordance with industry guidance, the voltage drop for the DC solar PV string should be calculated to ensure it does not exceed the maximum permitted voltage drop % at the stc between the solar array and the inverter.
Solar PV Voltage Drop Calculator
2.1.4 d.c. Cables – General, 2.1.4.1 Cable Sizing
Cables should be sized in accordance with BS 7671. These calculations shall also take into account the multiplication factors in 2.1.2 of this guide.
Guidance on a method of cable sizing including any de-rating factor requiring to be applied and typical current carrying capacities for common cable types are provided in Appendix 4 of BS 7671.
The DTI Guide to the installation of PV systems 2nd Edition states,
2.1.4.1 Cable sizing; Cables should be sized such that overall voltage drop at stc between the array and the inverter is <3%.
The MCS, Guide to the Installation of Photovoltaic Systems also states,
2.1.4.1 Cable sizing; Cables should be sized such that the overall voltage drop, at array maximum operating power (stc), between the array and the inverter is <3%.
DC Voltage Drop Calculation
DC Volt Drop Calculation Parameters:
- Load (Ib)
- DC Voltage (U)
- Length (1 way) (L)
- Cable Type & Size
DC Volt Drop Calculation Results:
- Volt Drop V
- Volt Drop %
- Full Length (Lx2)
- Resistance Per Meter (Ω)
DC Volt Drop Formula
R = Resistance per meter of the selected cable.
Ib = Load in Amps.
L = Cable length.
Volts Dropped = (L x 2) x Ib x R
Voltage Drop % = Volts Dropped / Voltage(U) x 100
Solar PV DC Voltage Drop Calculator
In order to carry out a volt drop calculation of the solar DC string you will need to know the resistance per meter for the cable type and size.

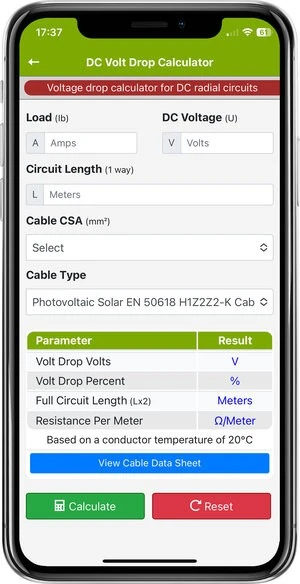

Within our “Electrical Tools and Reference” app we have created a new DC Volt Drop calculator with the resistance per meter for the cable type Photovoltaic Solar EN 50618 H1Z2Z2-K and sizes ranging from 1.5mm² up to 240mm², we have also included the manufacturers data sheet for the cable type used, you can check out this app here → The Electricians App.
For calculating voltage drop in AC circuits visit Voltage Drop Calculator.
Solar PV Volt Drop Calculator
